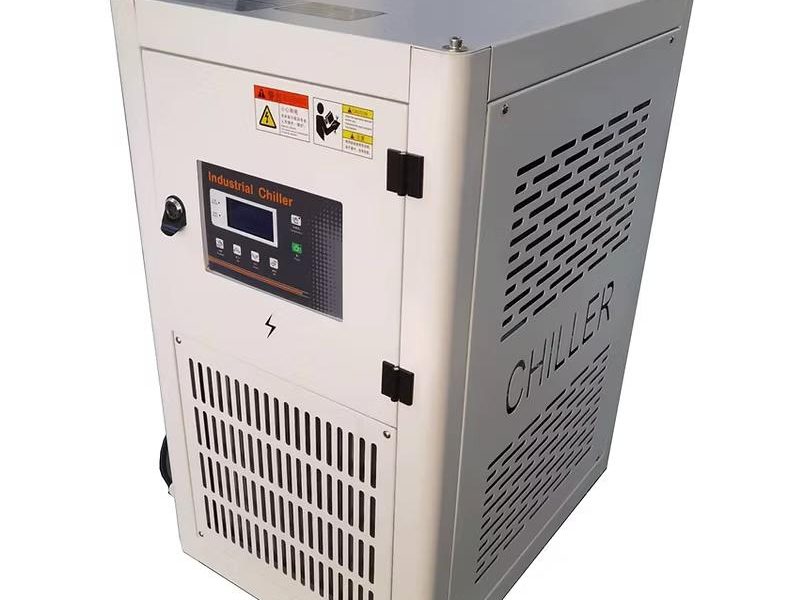

1hp Industrial water chiller XC-01ACI
Price: ₦2,000,000.00

Machine Overview

The 1HP Industrial Water Chiller XC-01ACI is an air-cooled, compact chiller designed for precise temperature control in small-scale industrial environments. With a cooling capacity of 2,700 Kcal/h and a 0.88kW compressor, this unit is ideal for PET bottle manufacturing, injection molding, laboratory equipment, and other processes requiring stable, efficient cooling performance.

Detailed Description

The XC-01ACI 1HP Industrial Water Chiller is engineered for reliable cooling in light industrial and laboratory applications. It utilizes an all-closed rotary compressor (0.88kW) and R22 refrigerant to deliver consistent cooling, while a corrosion-resistant water tank (20–39L) and a 0.15kW water pump provide uniform water flow. The maximum chilled water flow rate ranges from 5–15L/min, with a lifting height of up to 12 meters, making it suitable for installations where equipment is positioned at different elevations.

The air-cooled design eliminates the need for an external water source, simplifying installation and maintenance. The chiller features a digital temperature controller for precise adjustment, typically within a range of 5°C–35°C. Safety features include overload protection, high/low pressure alarms, and phase sequence protection, ensuring safe and reliable operation. Its compact footprint (750×480×1050 mm) and lightweight design (approx. 35–65kg) make it easy to integrate into existing setups or relocate as needed

Technical Specifications

  • Model Number: XC-01ACI
  • Capacity: 2,700 Kcal/h

Key Features

  • Efficient Cooling Capacity: 2,700 Kcal/h (2.7–3.14 kW) for small-scale industrial and laboratory use.
  • Energy-Efficient Compressor: 0.88kW (1HP) all-closed rotary compressor with R22 refrigerant.
  • Reliable Water Pump: 0.15kW pump delivers up to 5–15L/min flow and 12m lifting height.
  • Air-Cooled Design: No external water supply required; low-noise fan for heat dissipation.
  • Digital Temperature Control: Precise temperature adjustment for optimal process stability.
  • Compact & Portable: Small footprint and lightweight for easy installation and mobility
