A03 Manual Liquid Filling Machine | 5-50ml Paste & Liquid Bottle Filler
Compact Stainless Steel Manual Filler for Creams, Cosmetics, and Small-Batch Liquids
Machine Overview

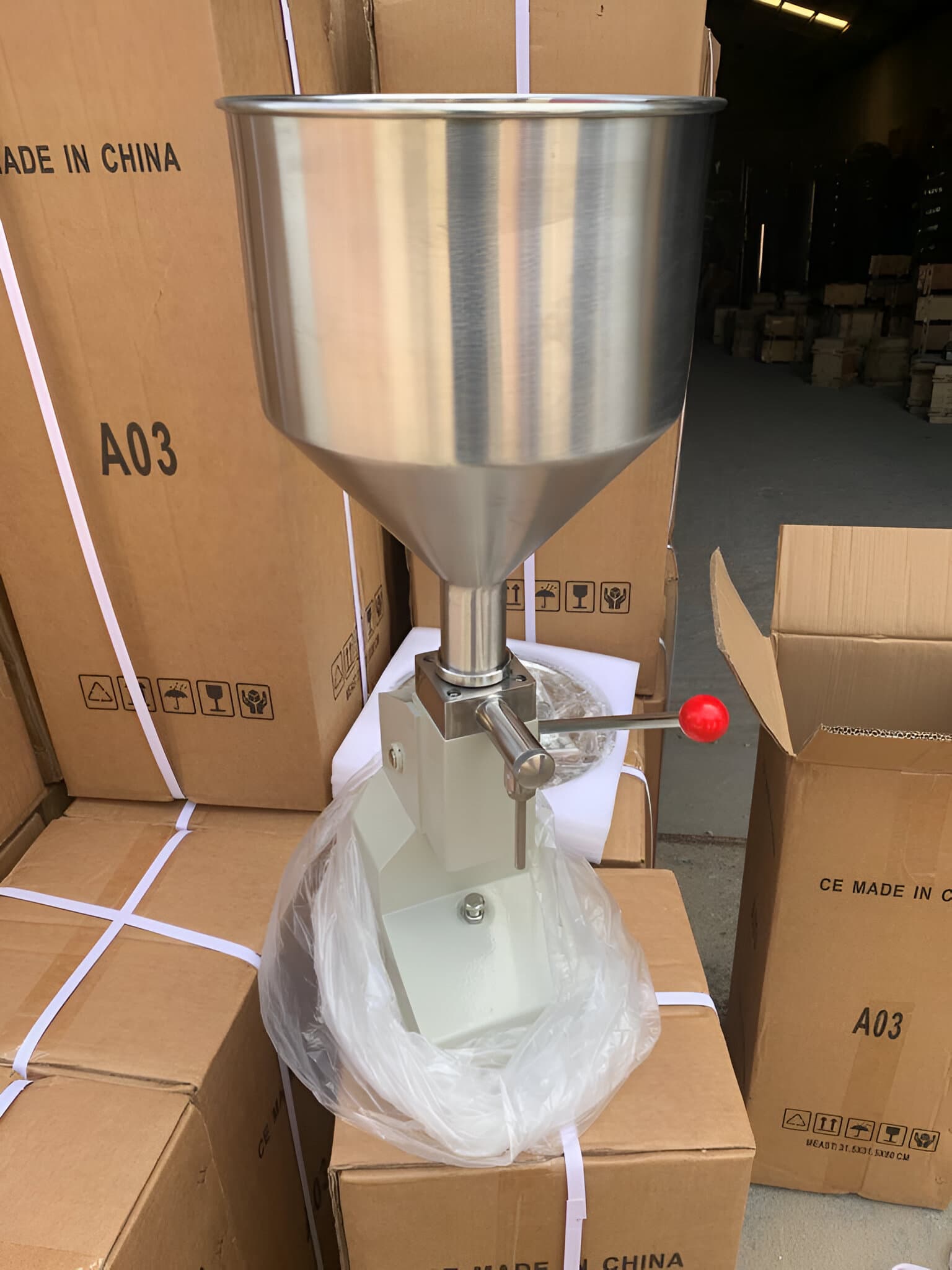

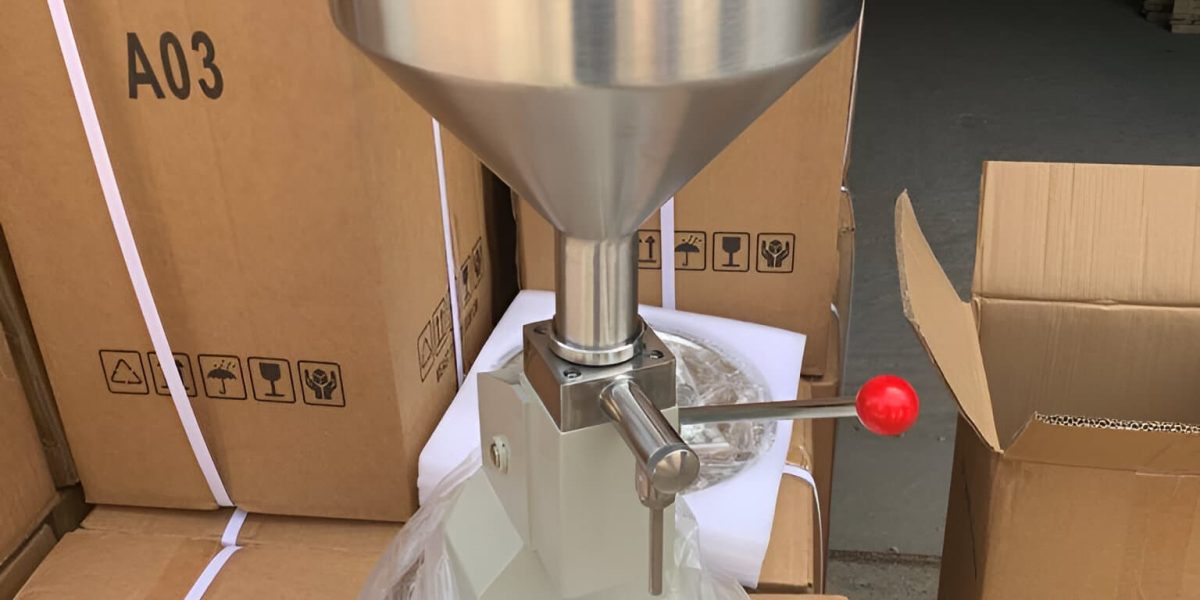

A03 Manual Liquid Filling Machine delivers precise 5–50ml filling for liquids and pastes. Stainless steel, easy to operate, and ideal for cosmetics, food, and laboratory applications.
Detailed Description
The A03 Manual Liquid Filling Machine is designed for accurate, small-volume filling of liquids and pastes such as creams, lotions, oils, sauces, and cosmetic products. Featuring a robust 304 stainless steel build, this manually operated piston filler ensures hygiene, durability, and easy cleaning—making it suitable for food, cosmetic, pharmaceutical, and laboratory environments.
With an adjustable filling range of 5–50ml and a large 10kg hopper, the A03 allows users to quickly and precisely fill bottles or containers by simply pressing the handle. The filling speed can reach 20–30 times per minute, and the filling accuracy is within ±1%. The machine is suitable for products with good fluidity but not for those containing particles or very thick pastes.
Its compact footprint and straightforward operation make it ideal for small businesses, start-ups, and research labs needing flexible, cost-effective filling solutions for small batches.
Small cosmetic and skincare producers
Food and condiment manufacturers
Pharmaceutical and laboratory technicians
Start-ups and small-scale businesses
R&D and quality control labs
A03 Manual Liquid Filling Machine | 5-50ml Paste & Liquid Bottle Filler Specification
Specification Table:
| Feature | Specification |
|---|---|
| Model | A03 |
| Operation | Manual piston |
| Filling Range | 5–50 ml (adjustable) |
| Filling Accuracy | ±1% |
| Filling Speed | 20–30 times/min |
| Hopper Volume | 10 kg |
| Suitable Bottle Dia. | 3–15 mm |
| Machine Size | 270 × 270 × 710 mm |
| Net Weight | 13 kg |
| Material | 304 Stainless Steel |
Key Features
- Manual piston-type operation—no electricity required
- 304 stainless steel construction for all product-contact parts
- Adjustable filling range: 5–50ml
- Large 10kg hopper for continuous filling
- Filling speed: 20–30 times/minute
- Filling accuracy: ±1%
- Suitable for liquids and pastes with good fluidity (not for chunky or highly viscous products)
- Easy to disassemble and clean
- Compact and portable design
