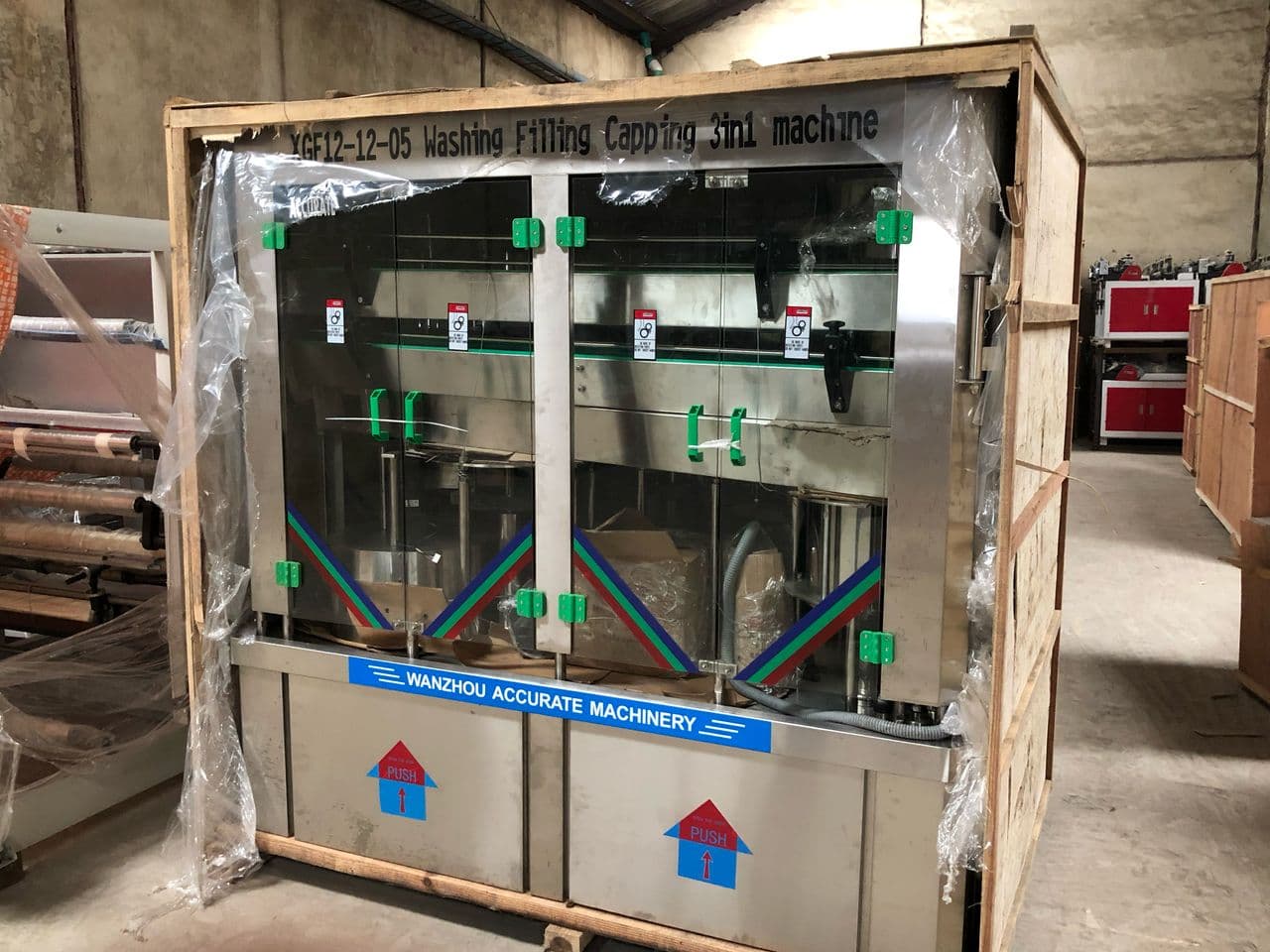

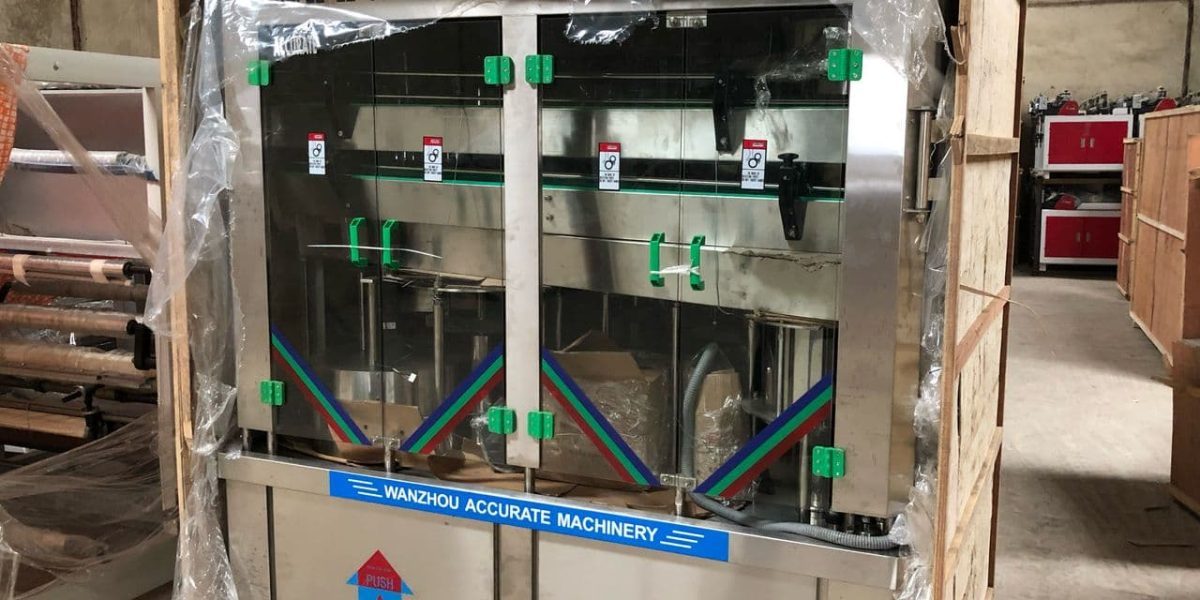

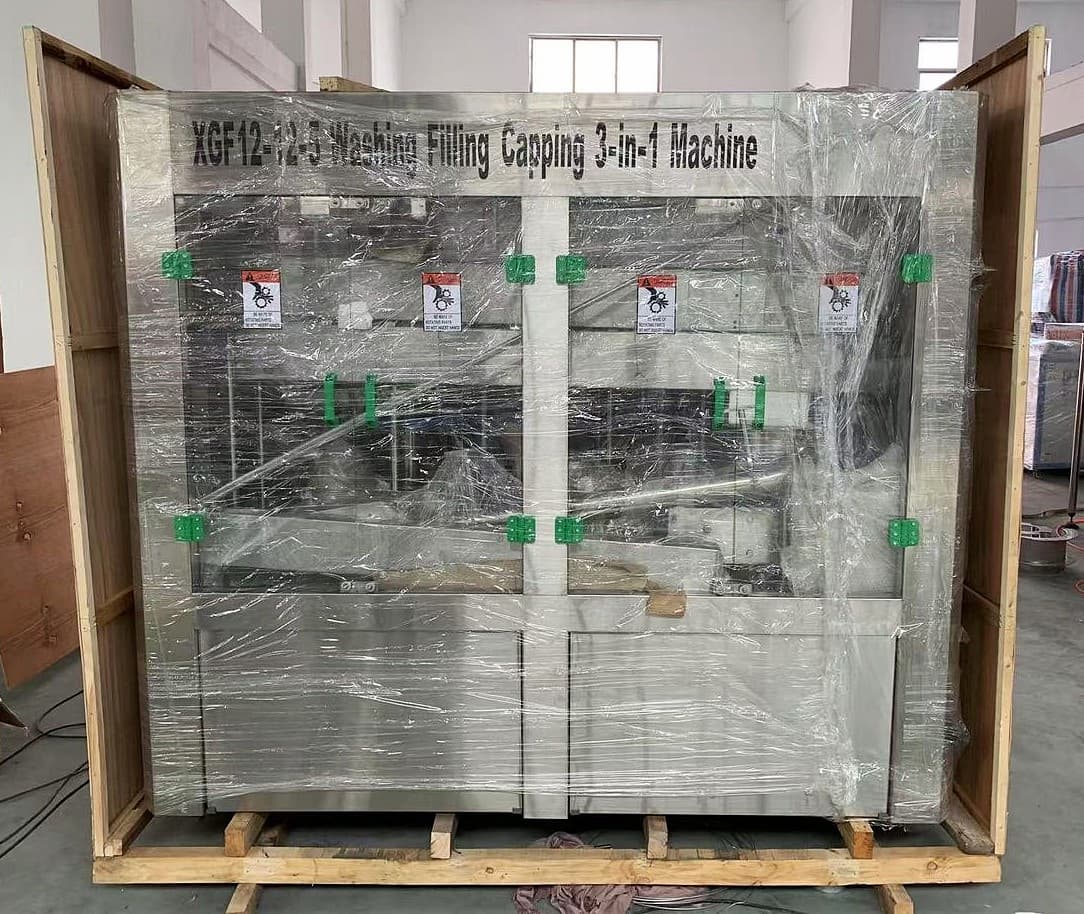

View line detailsAutomatic Bottle Water Machine XGF 12-12-5 (5000 BPH)
Efficient 3-in-1 PET Bottle Rinsing, Filling and Capping With Up to 5,000 Bottles Per Hour
Overview
The XGF 12-12-5 Automatic Bottle Water Machine is a fully automatic 3-in-1 monoblock for commercial PET bottled-water production. It combines bottle rinsing, treated-water filling and plastic screw-cap capping in one compact system, helping producers achieve faster, more organised and cleaner bottle handling.
With 12 rinsing heads, 12 filling valves and 5 capping heads, the XGF 12-12-5 produces up to 5,000 bottles per hour for 500 ml PET bottles. Actual output depends on bottle size, bottle design, cap type and production-line conditions. It is a practical choice for water factories seeking dependable medium-scale production capacity.
Applications & Use Cases of Automatic Bottle Water Machine XGF 12-12-5 (5000 BPH)
- Purified drinking-water bottling
- Table-water production
- Mineral-water bottling
- Still drinking-water production
- PET bottled non-carbonated drinks
- Selected herbal drinks filled at normal temperature
Related production lines
Ready to Increase Your Bottled Water Output?
Get the XGF 12-12-5 automatic bottle water machine for efficient PET bottle rinsing, filling and capping. Request a quote based on your bottle size, output target and factory location.

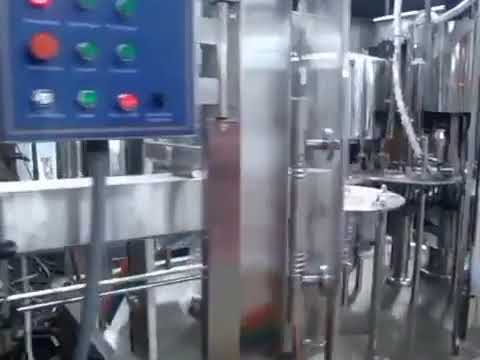

Request XGF 12-12-5 QuoteMachine Demonstration
Engineering Specifications
| Technical Parameter | Value / Description |
|---|---|
| Specification | Details |
| Model | XGF 12-12-5 |
| Machine Type | Fully automatic 3-in-1 PET bottle rinsing, filling and capping monoblock |
| Main Functions | Bottle rinsing, liquid filling and plastic screw-cap capping |
| Rinsing Heads | 12 |
| Filling Valves | 12 |
| Capping Heads | 5 |
| Production Capacity | Up to 5,000 bottles per hour (500 ml PET bottle) |
| Bottle Type | PET plastic bottles |
| Filling Temperature | Normal / ambient temperature |
| Main Power | 4 kW |
| Voltage | 380 V, 50 Hz, 3-phase** |
| Control System | PLC-controlled automatic operation |
| Machine Material | Food-grade stainless steel product-contact parts |
| Dimensions | 2,230 × 1,630 × 2,000 mm |
| Approximate Weight | 2,400 kg |
| Production Scale | Medium-scale bottled-water production |
Regulatory Compliance
For food-safety guidance relevant to bottled-water operations, review the NAFDAC food and water safety information before setting up your production facility.
Need a Complete Bottled Water Production Line?
Build a properly matched water-production line with RO water treatment, PET bottle blowing, XGF 12-12-5 bottling, labeling, date coding and shrink wrapping equipment.
Get Complete Line QuoteRelated Machines
Get Your XGF 12-12-5 Price Today
Send your bottle size, required bottles-per-hour capacity and location in Nigeria. We will help you select the right XGF 12-12-5 configuration and supporting equipment for your water factory.
Chat on WhatsAppAutomatic Bottle Water Machine XGF 12-12-5 (5000 BPH) – Frequently Asked Questions
The XGF 12-12-5 produces up to 5,000 bottles per hour, typically based on 500 ml PET bottles. Actual output depends on bottle size, bottle design, cap type, product characteristics and production-line conditions.
The XGF 12-12-5 is designed for efficiency.Consumes 3.5kW – 5kW. A 25kVA – 35kVA generator is typically enough to power the entire line, including the air compressor.
Yes. It handles 35cl, 50cl, and 75cl. Changing sizes requires a simple “star wheel” swap and height adjustment (takes ~30 mins)
We stock critical spares locally (valves, sensors, capping heads). Most electronics are standard Schneider/Mitsubishi for easy local replacement.
