Automatic Foil Sealing Machine DW-2300
Efficient Automatic Induction Foil Sealer for Bottles and Containers in Food, Pharma, and Chemical Packaging
Availability:
✅ In Stock
Price:
₦1,600,000.00
Machine Overview
Automatic Foil Sealing Machine DW-2300 offers high-speed, non-contact aluminum foil induction sealing for bottles and containers. Perfect for food, pharmaceutical, and chemical packaging lines with adjustable sealing speed and diameter.
Detailed Description
The DW-2300 Automatic Foil Sealing Machine is a state-of-the-art electromagnetic induction sealer designed for high-speed, non-contact aluminum foil sealing of bottles and containers. Utilizing advanced electromagnetic induction technology, the DW-2300 generates high-frequency alternating magnetic fields that heat the aluminum foil inside the cap, melting the adhesive layer and bonding the foil securely to the bottle mouth. This ensures a tamper-evident and leak-proof seal, protecting product freshness and preventing contamination.
Engineered for demanding packaging lines, the DW-2300 supports a wide range of bottle materials including plastic (PP, PVC, PET, ABS, HDPE, PS) and glass. Its fully automatic operation, PLC control, and touch screen interface allow for precise adjustment of sealing parameters, making it suitable for various cap sizes and production speeds. The air-cooled system guarantees stable, continuous operation, while built-in safety features such as over-current and over-temperature protection ensure reliable performance.
The DW-2300 is widely used in the food, pharmaceutical, cosmetics, chemical, and agrochemical industries, integrating seamlessly into automated bottling lines for maximum efficiency.
Food and beverage manufacturers
Pharmaceutical companies
Chemical and agrochemical packagers
Cosmetic and personal care product manufacturers
Industrial packaging lines requiring tamper-evident, leak-proof seals
Automatic Foil Sealing Machine DW-2300 Specification
Specification Table:
| Feature | Specification |
|---|---|
| Model | DW-2300 |
| Voltage | AC 240V, 50Hz |
| Sealing Speed | 0–200 bottles/min (typical) |
| Max Power | 4 kW |
| Sealing Diameter | 15–40 mm (typical) |
| Cooling Method | Air cooling |
| Dimensions (L×W×H) | ~1080 × 500 × 980 mm |
| Weight | ~60 kg |
| Application | Automated packaging line integration |
Key Features
- High-speed, non-contact electromagnetic induction sealing
- Suitable for plastic and glass bottles with aluminum foil caps
- Adjustable sealing diameter and speed (typically 0–200 bottles/min)
- PLC control with user-friendly touch screen interface
- Air-cooled system for stable, continuous operation
- Over-current and over-temperature protection
- Compatible with a wide range of bottle and cap sizes
- Seamless integration into automated packaging lines

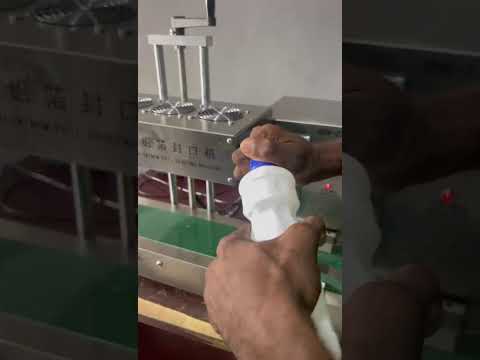

Watch the Machine in Action
Video demo for illustration. Contact us for full specifications.
