GC-A Liquid Filling Machine | Semi-Automatic Table Top Pneumatic Filler
Precise Pneumatic Liquid Filler for Food, Pharma, and Industrial Applications
Availability:
✅ In Stock
Price:
₦1,400,000.00
Machine Overview

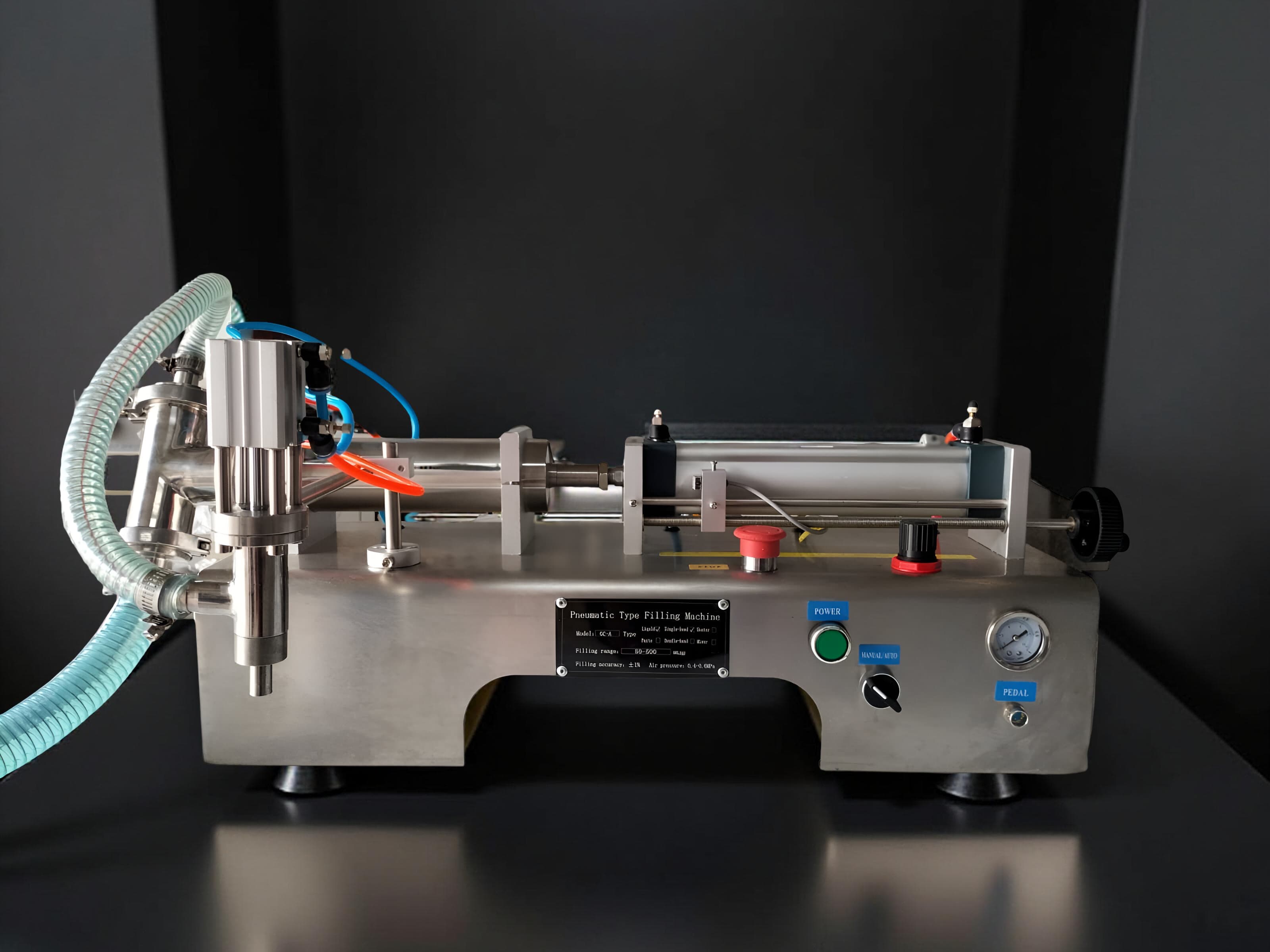

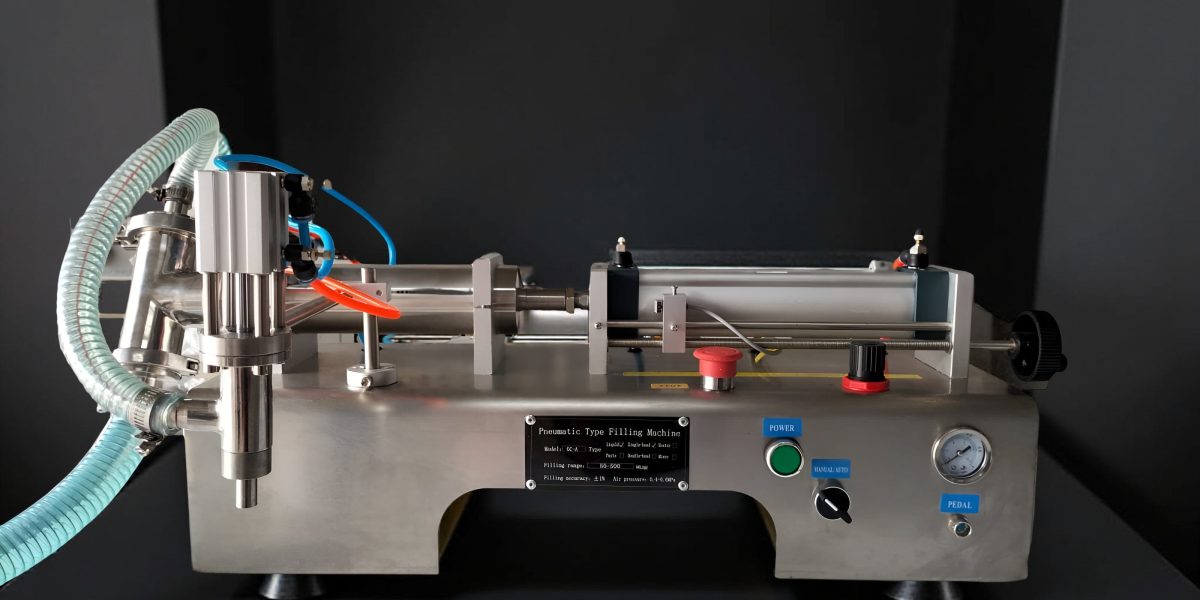

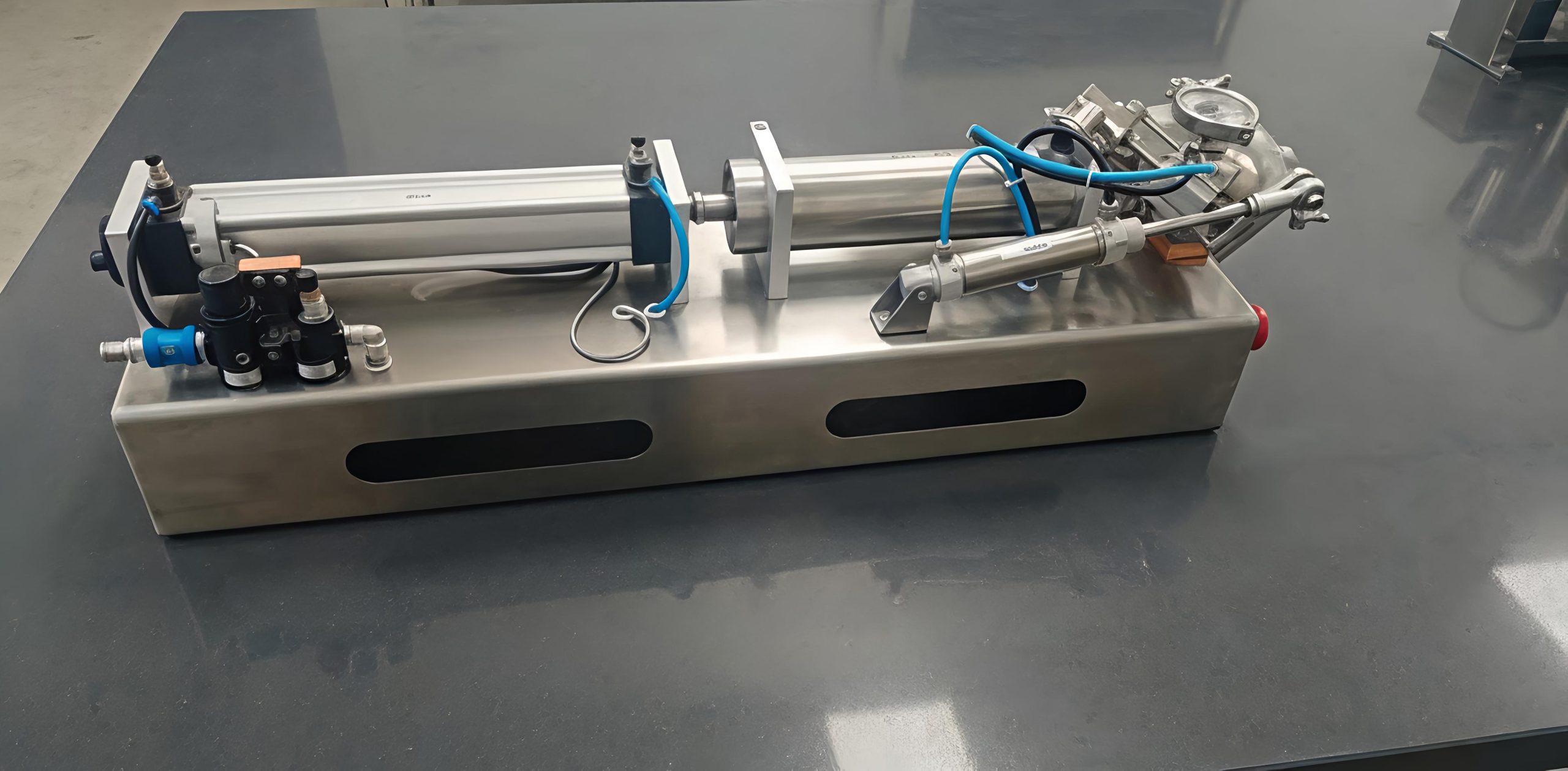

The GC-A Liquid Filling Machine is a single nozzle Semi-automatic table top pneumatic filler for 10–1000ml liquids. Perfect for food, pharma, and industrial packaging.bundle comes with an air compressor for plug-and-play operation.
Detailed Description
The GC-A Liquid Filling Machine is a semi-automatic, table top pneumatic filler designed for precise, efficient filling of free-flowing liquids in food, pharmaceutical, chemical, and cosmetic industries. This bundle includes a compatible air compressor, so you have everything needed for immediate, reliable operation.
Built with 304 stainless steel and PTFE contact parts, the GC-A ensures hygiene and durability. The machine features a single filling nozzle and a flexible filling range of 10–1000ml, with simple volume and speed adjustments for different product sizes. Pneumatic operation provides smooth, consistent dosing and anti-drip performance, while the included air compressor (400L/min at 0.6 Mpa) guarantees stable air supply and eliminates the need for separate sourcing.
With a filling speed of 600–1500 bottles per hour, the GC-A is ideal for small to medium-scale production, R&D labs, and businesses seeking a cost-effective, ready-to-use liquid filling solution. The machine is easy to clean and maintain, and complies with GMP standards.
Food and beverage producers
Pharmaceutical and chemical packagers
Cosmetics and personal care manufacturers
Small businesses and start-ups
Laboratories and R&D facilities
GC-A Liquid Filling Machine | Semi-Automatic Table Top Pneumatic Filler Specification
Specification Table:
| Feature | Specification |
|---|---|
| Model | GC-A |
| Filling Type | One nozzle |
| Air Supply | 400L/min, 0.6 Mpa |
| Filling Range | 10–100ml, 50–500ml, 100–1000ml |
| Filling Speed | Up to 3 liters/minute |
| Efficiency | 600–1500 bottles/hour |
| Material | 304 Stainless Steel, PTFE |
| Automation Grade | Semi-automatic |
| Machine Size (L×W×H) | 350 × 320 × 200 mm |
| Power | Pneumatic (no main electric motor) |
Key Features
- Semi-automatic, table top design
- Pneumatic operation (air compressor included)
- 304 stainless steel and PTFE contact parts
- Adjustable filling range: 10–100ml, 50–500ml, 100–1000ml
- Filling speed: up to 3 liters/minute, 600–1500 bottles/hour
- Single nozzle for precise dosing
- Anti-drip and anti-leak filling head
- Easy to operate, clean, and maintain
- GMP compliant

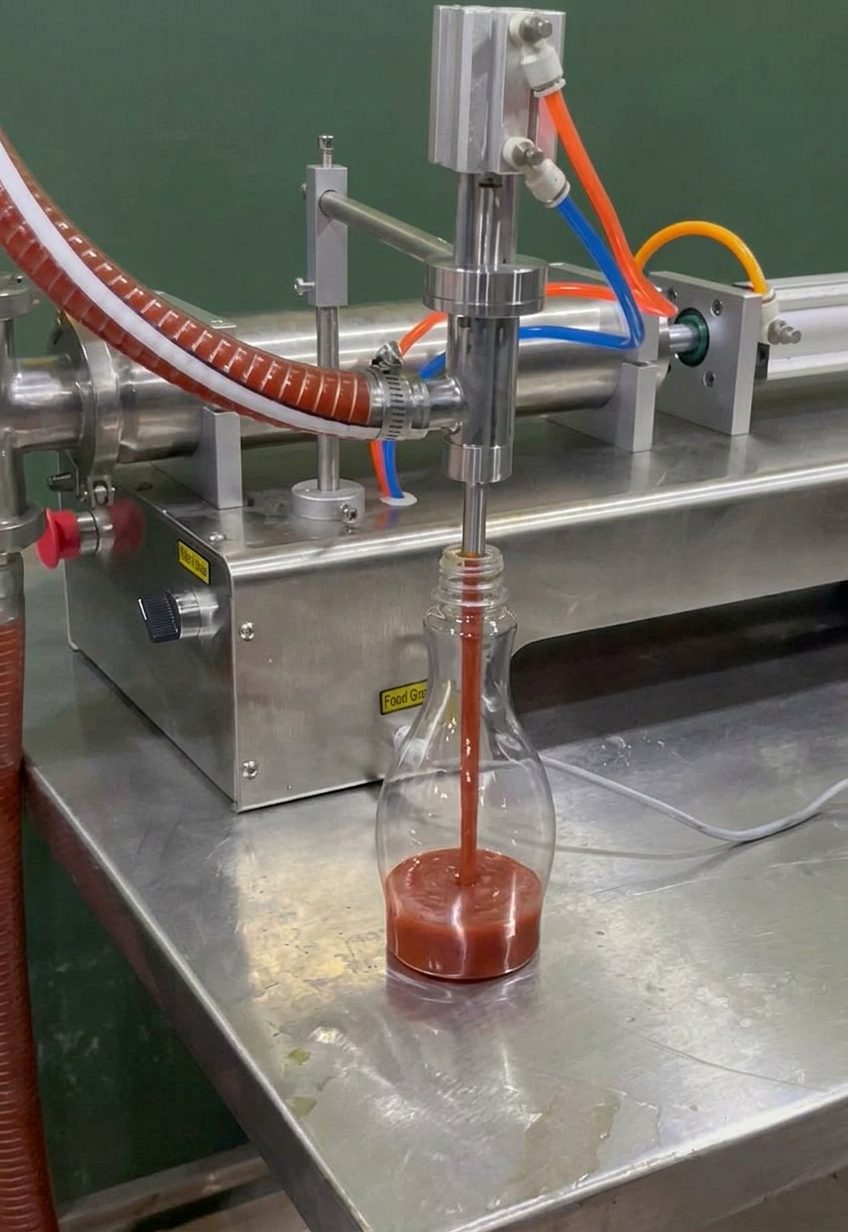

Watch the Machine in Action
Video demo for illustration. Contact us for full specifications.
