Gravure 4 Colour nylon Printing Machine ASY4-1200
Price: ₦38,000,000.00

Machine Overview

The ASY4-1200 Gravure 4 Colour Printing Machine is a high-performance gravure press designed for vibrant, multi-colour printing on a wide range of flexible substrates.

With a maximum material roll width of 1230mm and a maximum printing width of 1200mm, this machine is ideal for converters and manufacturers producing packaging films, shopping bags, food wrappers, and industrial labels that demand speed, consistency, and premium print quality.

Detailed Description

The ASY4-1200 Gravure 4 Colour Printing Machine is engineered for industrial-scale printing on flexible films like OPP, PE, and PVC. Its four-color system delivers sharp, vivid graphics—ideal for premium packaging and branded consumer goods. This high-speed press supports a max roll width of 1230mm and a print width of 1200mm, enabling efficient large-format production.

Operating at mechanical speeds up to 60m/min and a practical range of 10–50m/min (depending on material and operator skill), it balances quality with throughput. The frequency motor ensures variable speed control, while precise tension control (3–50kg, ±0.5kg) and registration accuracy of ±0.15mm guarantee consistent output across runs.

Each print unit includes electric heating dryers (9kW per group) for fast ink curing. The machine supports cylinder diameters from 100mm to 270mm, offering flexibility for various job sizes. Quick-change cylinder systems and advanced controls minimize downtime and simplify operation.

It’s a reliable, high-performance solution for businesses needing consistent, high-quality gravure printing on flexible packaging materials.

ASY4-1200 Gravure 4 Colour

Specification Table:

ParameterASY4-1200 Specification
ModelASY4-1200
Printing Colors4
Max. Material Roll Width1230 mm
Max. Printing Width1200 mm
Printing Length (Repeat)Cylinder dia. 100–270mm
Max. Mechanical Speed60 m/min
Max. Printing Speed10–50 m/min
Rewinding/Unwinding Dia.600 mm
Register AccuracyLengthwise: ±0.15mm; Crosswise: ±0.15mm
Tension Scale3–50kg
Tension Accuracy0.5kg
Drying SystemElectric heating, 9kW per group
Main MotorFrequency motor (2.2kW)
Total Power50kW
Dimensions (L×W×H)2.3 × 2.2 × 2.3 m
Weight2000 kg
Voltage380V, 50Hz, three-phase
Suitable MaterialsOPP, PE, PVC
📥 Download Specification File

Key Features

  • 4 Colour Gravure Printing: Vivid, multi-color graphics for branding and product information
  • Wide Web Capability: Handles material roll widths up to 1230mm, print width up to 1200mm
  • Flexible Print Length: Supports a wide range of printing lengths with adjustable cylinder diameters (100–270mm)
  • High-Speed Production: Mechanical speed up to 60m/min; printing speed 10–50m/min
  • Versatile Material Compatibility: Prints on nylon, OPP, PE, PVC, and other flexible films
  • Efficient Drying System: Electric heating, 9kW per color group for rapid ink curing
  • Frequency Motor Drive: Variable speed for optimized performance
  • User-Friendly Operation: Quick-change cylinder system, intuitive controls

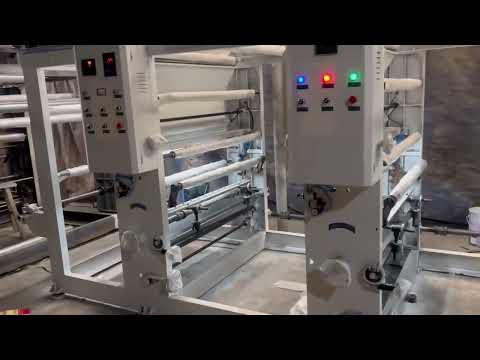

Watch the Machine in Action

Gravure 4 Colour Nylon Printing Machine ASY4 1200

Video demo for illustration. Contact us for full specifications.
