Semi Automatic PET Bottle Blowing Machine HZ880
Machine Overview

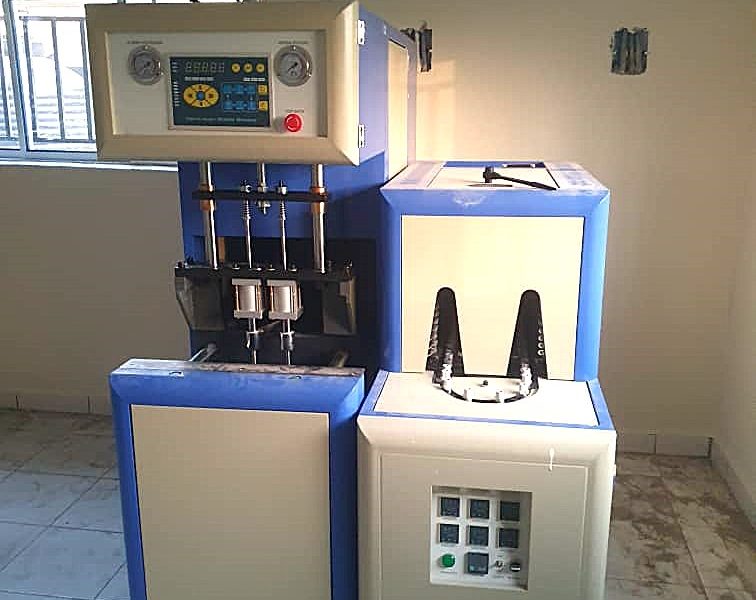

The Semi-Automatic PET Bottle Blowing Machine HZ880
The HZ880 model semi automatic PET bottle blowing machine is a reliable and cost-effective PET bottle blowing machine tailored for small-scale to medium-scale bottle production. It offers users full control over the production process, from preform loading to bottle ejection, making it perfect for hands-on operators who want to understand every detail of bottle formation.
This semi-automatic model is capable of producing up to 1000 bottles per hour with high consistency, depending on operator speed and air supply. The infrared heating system ensures even and effective heating of the preforms, while the simple mechanical design guarantees long-term durability and ease of maintenance.
Detailed Description
Semi-Automatic PET Bottle Blowing Machine HZ880
The HZ-880 Semi-Automatic PET Bottle Blowing Machine is a reliable, user-friendly solution for small to medium-scale PET bottle production. It consists of two independent but complementary units:

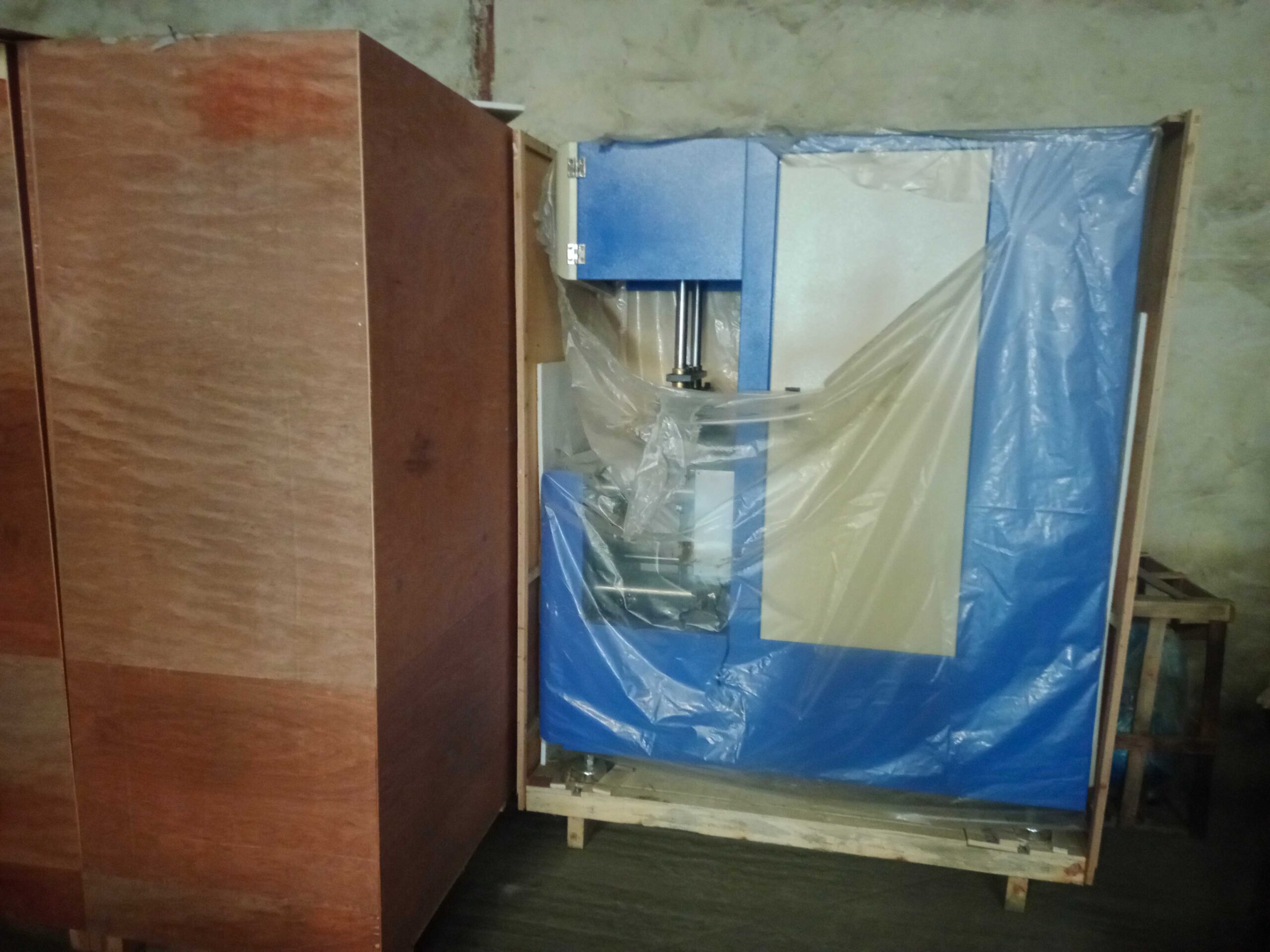

1. Main Blowing Unit
This is the core of the HZ-880 system, responsible for stretching and blowing the preforms into fully formed PET bottles.
Function:
- Holds the mold, performs the clamping, stretching, and high-pressure blowing process.
- Features a double-arm clamping system that ensures stable, airtight performance.
Features:
- Supports 1-cavity (for large bottles) and 2-cavity (for smaller bottles) operation.
- Compatible with bottle volumes from 100ml to 6L.
- Equipped with safety interlocks and a compact control panel.
Dimensions:
- Length: 1.45 meters
- Width: 0.60 meters
- Height: 1.75 meters
Power Requirement:
- Electrical Power: 12 kW
- Voltage: 220V–380V, 50–60Hz
Weight: Approx. 600 kg

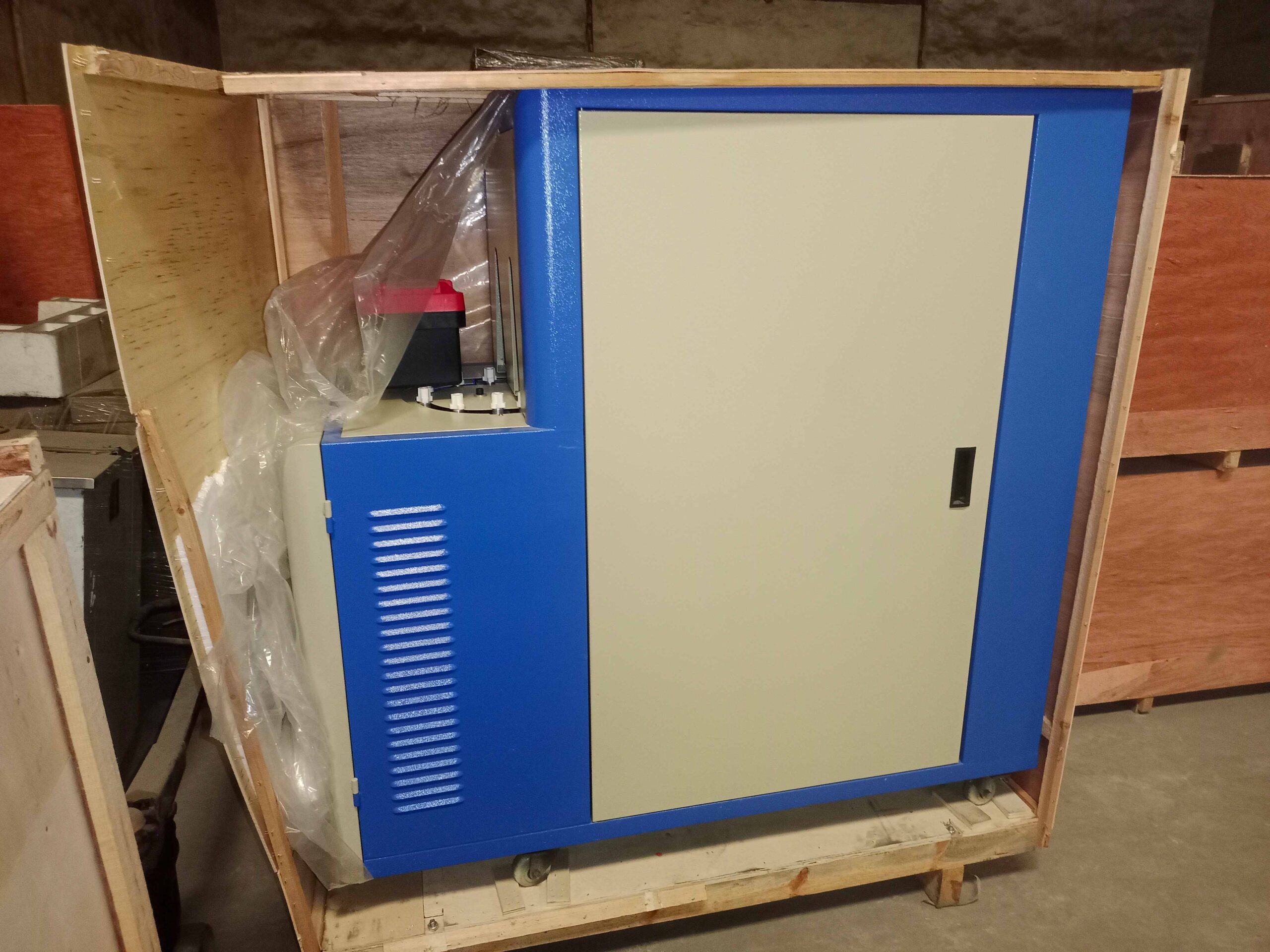

2. Preform Heating Unit (Infrared Heater)
This unit is responsible for evenly heating the PET preforms before the blowing process begins.
Function:
- Uses infrared (IR) lamps to soften the PET preforms to an optimal blowing temperature.
- Ensures uniform wall thickness in the final bottle.
Features:
- Adjustable lamp positions for different preform sizes.
- Equipped with a rotation system for even heating.
Dimensions:
- Length: 1.40 meters
- Width: 0.62 meters
- Height: 1.25 meters
Power Requirement:
- Integrated within the machine’s 12 kW system.
- Specific heater load: 6–8 kW depending on usage.
Weight: Approx. 220 kg
Complete System Summary
Together, these two units form a compact, efficient, and cost-effective semi-automatic PET bottle production line, suitable for water, oil, juice, detergent, and cosmetics packaging.
Technical Specifications
- Model Number: HZ880
- Capacity: 1000 Bottle per hour
- Power Source: 18kw
Key Features
- Simple and affordable semi-automatic operation
- Produces up to 1000 bottles/hour
- Supports bottle sizes from 100ml to 2L
- 2-cavity mold system
- Manual preform feeding and bottle collection
- Efficient infrared preform heating oven
- Ideal for small factories and startups
- Low maintenance and easy to operate
- Compact design to save space
- Compatible with water, beverage, and cosmetic bottles
Watch the Machine in Action
Frequently Asked Questions
What’s the output capacity of the HZ880?
The machine can produce approximately 800–1200 bottles per hour, depending on the operator's efficiency and bottle size
Does it support different neck types and mold shapes?
Yes, the machine is customizable for different bottle neck sizes and supports quick mold changes.
How many people are required to run the machine?
Typically, 1–2 operators are needed—one to insert the preforms and the other to remove the finished bottles.
