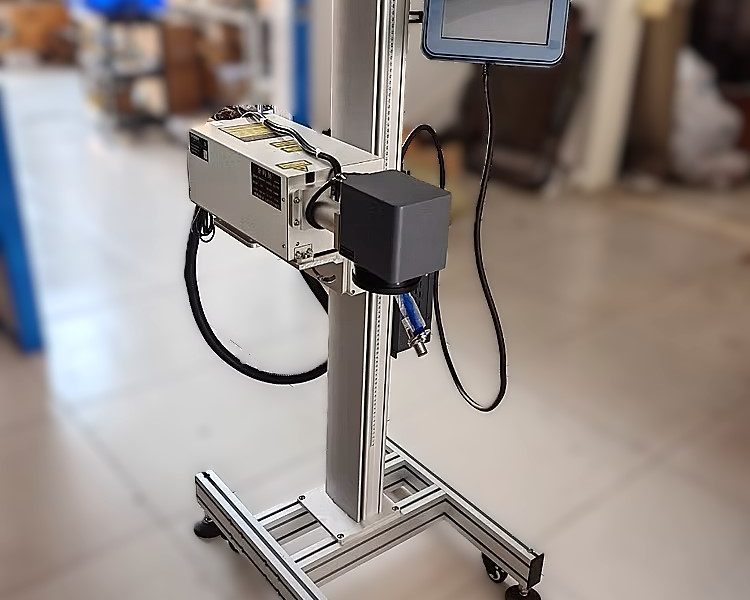

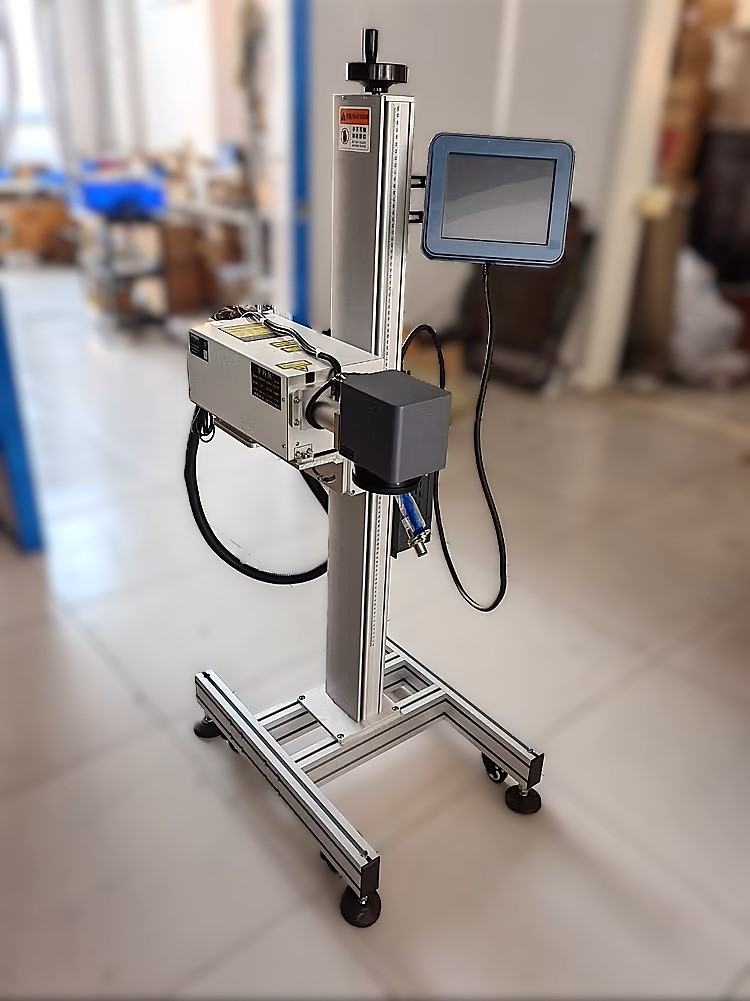

UV Laser Coding Machine
High-Precision, Permanent Coding for Industrial Packaging and Product Marking
Availability:
✅ In Stock
Price:
₦6,500,000.00
Machine Overview
The UV Laser Coding Machine provides precise, permanent, and eco-friendly marking on plastic, glass, and metal packaging. High-speed, maintenance-free laser coding for modern production lines
Detailed Description
The UV Laser Coding Machine is a next-generation industrial marking solution designed for manufacturers who require permanent, high-contrast, and contact-free coding on a wide range of materials. Engineered with ultraviolet laser technology (355 nm), it delivers clean, crisp, and durable markings without ink, solvents, or maintenance downtime.
This machine operates with exceptional accuracy, making it ideal for batch coding, expiry dates, QR codes, logos, and traceability data on complex or sensitive packaging materials. Its cold marking process ensures there is no surface damage, deformation, or color change — producing smooth, high-resolution results every time.
With a compact, industrial-grade design and smart control software, the UV Laser Coding Machine integrates easily into new or existing production lines, helping businesses achieve efficient and eco-friendly product identification
Applications
Ideal For:
-
Food and beverage packaging
-
Cosmetic bottles and tubes
-
Pharmaceutical containers
-
Electronic components and cables
-
Glass and plastic bottles
UV Laser Coding Machine Specification
Specification Table:
| Specification | Details |
|---|---|
| Laser Type | UV Laser (355 nm) |
| Laser Power | 5 Watts |
| Marking Area | 110 × 110 mm (standard) |
| Marking Speed | Up to 7000 mm/s |
| Marking Depth | ≤ 0.3 mm (material-dependent) |
| Cooling Method | Air-cooled |
| Control System | Integrated PC control with user-friendly marking software |
| Supported Formats | PLT, BMP, JPG, DXF, TTF, AI |
| Minimum Line Width | 0.01 mm |
| Repeat Precision | ± 0.001 mm |
| Power Supply | AC 220 V ± 10%, 50/60 Hz |
| Operating Temperature | 15 °C – 35 °C |
| Dimensions | 750 × 550 × 1350 mm |
| Weight | Approx. 80 kg |
| Connectivity | USB / RS232 / Ethernet |
| Optional Add-ons | Conveyor, sensor trigger, fume extractor |
UV Laser Coding Machine
The UV Laser Coding Machine is built for modern production lines that demand accuracy, cleanliness, and lasting results. It uses a high-energy ultraviolet beam to mark directly on plastics, glass, ceramics, and coated materials — producing sharp, permanent codes without any ink or solvent.
Product Currency: NGN
Product Price: 6500000
Product In Stock: InStock
Key Features
- Permanent, high-contrast laser marking on various materials
- Non-contact, cold marking process – no heat distortion
- Maintenance-free operation with no consumables
- Intelligent touchscreen control for precise operation
- High-speed performance for continuous production lines
- Compact, dustproof design for industrial environments
- Ideal for QR codes, batch numbers, barcodes, and expiry dates
Watch the Machine in Action
Video demo for illustration. Contact us for full specifications.

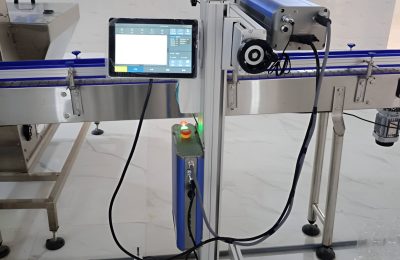

Explore Other Models
We offer nationwide delivery, installation support, and after-sales service for the UV Laser Coding Machine.
Want a demo or quotation? 👉 Contact us today to discuss your coding and marking needs.
