DRQ-800 Side Sealing Nylon Bag Making Machine
High-Speed Side Sealing and Folding for Versatile Nylon Bag Production
Overview
The DRQ-800 Side Sealing Bag Making Machine with Folder is a high-speed, fully automatic system designed for precision side sealing and cutting of plastic bags, with integrated film folding capabilities. This machine is suitable for processing various plastic films—including OPP, PP, PE, CPP, POF, and laminated films—making it ideal for producing garment bags, bread bags, towel bags, cosmetic bags, and other packaging products. The addition of a 1200mm folding unit allows for the creation of bags with folded edges or gussets, expanding the range of bag styles and applications.
Applications & Use Cases of DRQ-800 Side Sealing Nylon Bag Making Machine
- Back-to-back bags
- Transparent packaging bags
- Printed nylon bags
- Garment packaging bags
- Bread and bakery bags
- Courier and mailing bags
- Adhesive-flap bags
- Zip-lock bags, with the appropriate zipper attachment
DRQ-800 Side Sealing Nylon Bag Making Machine – Technical Specifications
| Model Number |
|
| Availability |
In Stock |
| Technical Parameter |
Value / Description |
| Model | DRQ-800 Side Sealing Nylon Bag Making Machine |
| Folding unwinding width | 200–1600 mm |

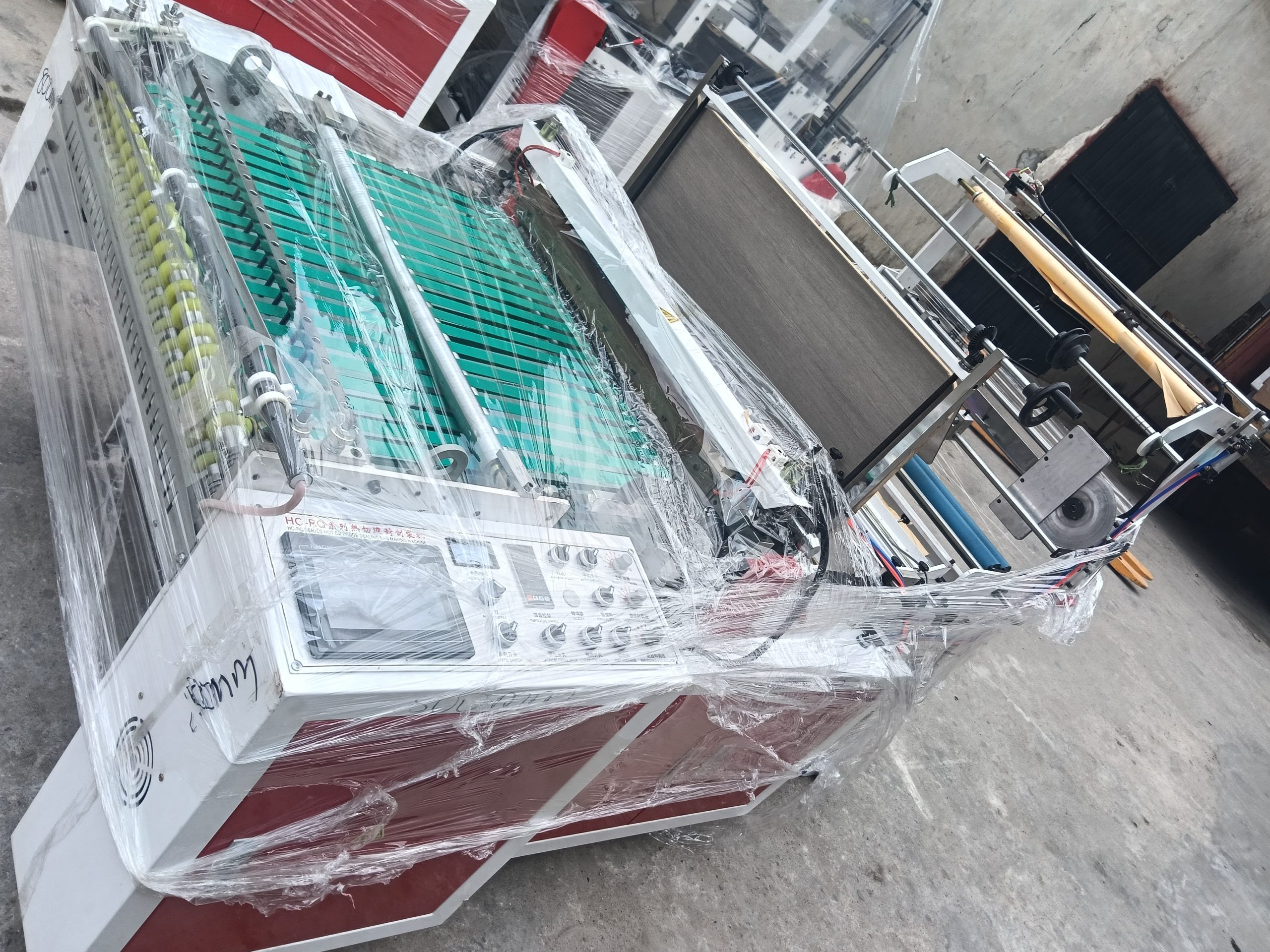

| Folder size | 1600 mm |
| Bag length | 50–700 mm |
| Bag width 1 | 00–750 mm |
| Production speed | 100–200 bags per minute |
| Bag-making accuracy | ±0.5 mm |
| Servo motor power | 2.0 kW |
| Main motor power | 1.1 kW |
| Heating power | 3.0 kW |
| Total installed power | 7.0 kW |
| Power supply | 220V, 50Hz |
| Machine weight | 1,500 kg |
| Overall dimensions | 5000 × 1400 × 1800 mm |
| Suitable film materials | OPP, PP, PE, CPP, POF and similar heat-sealable plastic film |
