View line detailsQGF-120 Automatic 5-Gallon Water Filling Machine
High-Efficiency 5-Gallon Water Rinse, Fill and Cap System
Overview

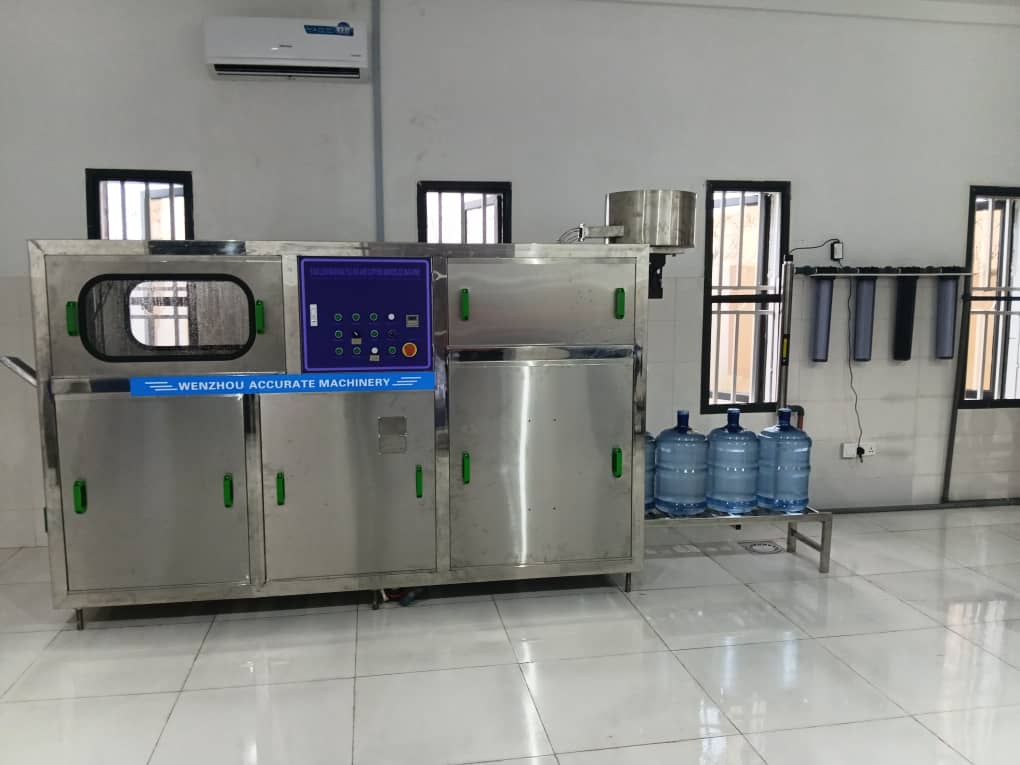

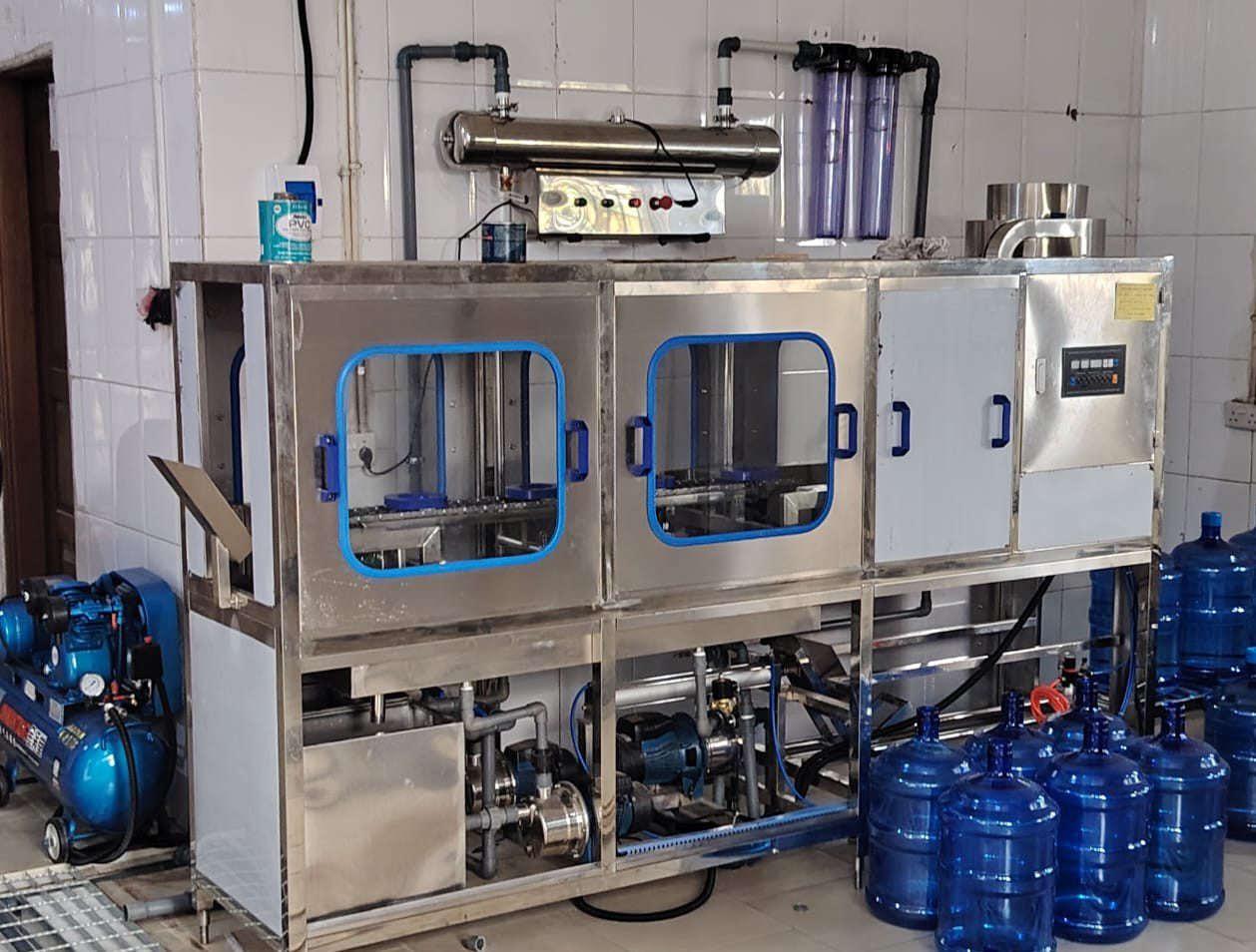

The QGF-120 Automatic 5-Gallon Water Filling Machine is a compact, three-in-one solution that automatically rinses, fills, and caps 19-litre/5-gallon water barrels. Built with hygienic SUS304 stainless steel, it delivers a production capacity of 100–120 barrels per hour, making it suitable for start-up and growing dispenser-water production businesses.

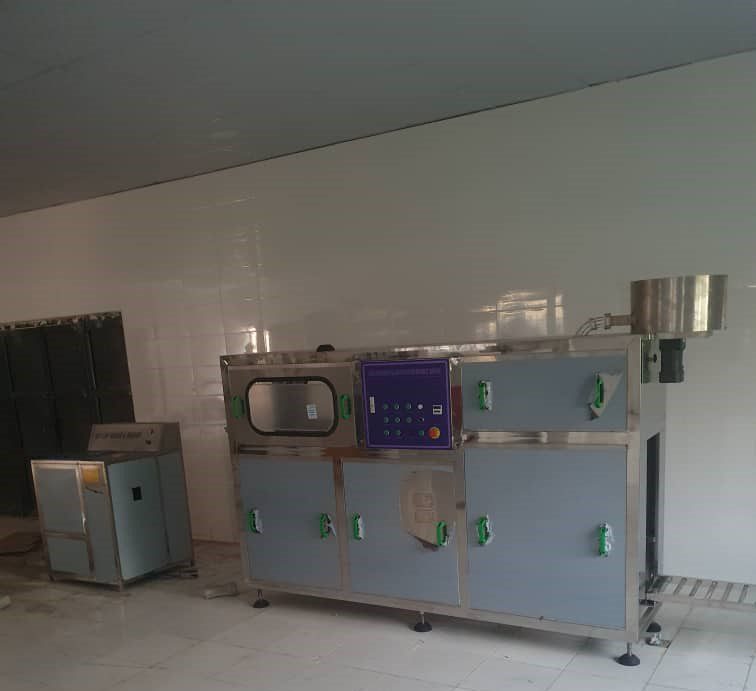

The machine automates the key final stages of 5-gallon water packaging: it rinses compatible barrels, fills them with treated drinking water, and applies caps for secure handling and distribution. For a complete production setup, the QGF-120 should be used with Water Treatment Sytems to produce safe, treated water before filling. Businesses using returnable barrels may also require a Decapper and Brusher for removing old caps and cleaning the outside of returned bottles.
For businesses producing packaged drinking water, we recommend following the relevant guidelines from the National Agency for Food and Drug Administration and Control (NAFDAC) before commencing production.
Applications & Use Cases of QGF-120 Automatic 5-Gallon Water Filling Machine
- 5-gallon purified-water production plants
- 19-litre dispenser-water businesses
- Water suppliers serving homes, offices, and shops
- Hotels, schools, hospitals, estates, and factories with in-house water supply
- Start-up and medium-scale bottled-water entrepreneurs
Related production lines
Request Machine Details
Buy the QGF-120 Automatic Water Filling Machine
Chat on WhatsAppMachine Demonstration
Engineering Specifications
| Technical Parameter | Value / Description |
|---|---|
| Specification | Details |
| Model | QGF-120 |
| Machine type | Automatic 5-gallon water filling machine |
| Production capacity | 100–120 barrels per hour |
| Filling volume | 5 gallons / approximately 18.9 litres |
| Filling heads | 1 head |
| Suitable barrel size | 276 × 490 mm |
| Power supply | 220 V / 50 Hz |
| Installed power | 2 kW |
| Air supply pressure | 0.45–0.60 MPa |
| Main material | SUS304 stainless steel |
| Machine dimensions | 2,800 × 750 × 1,800 mm (L × W × H) |
| Application | Purified water, drinking water, or mineral water in 5-gallon dispenser bottles |
Request Machine Details
Chat on WhatsAppRelated Machines
Request Machine Details
Chat on WhatsAppQGF-120 Automatic 5-Gallon Water Filling Machine – Frequently Asked Questions
The QGF-120 is used to rinse, fill, and cap 5-gallon or 19-litre water barrels automatically for commercial water production.
It produces about 100–120 barrels per hour, depending on bottle condition, operator speed, and production setup.
No, it is a filling machine. It usually works alongside a water treatment plant, decapper, bottle washer, compressor, and other supporting equipment..
It is designed for standard 5-gallon / 19-litre barrels with compatible neck and body dimensions.
